Project Goal: Design training footwear that offers protection and precision for skilled boxing workouts.
Design Thesis Presentation
Boxing Fitness
Group fitness trend that combines skilled boxing workouts and strength training for weight loss and body conditioning.
Consumer is not concerned with records or accolades, but rather personal development.

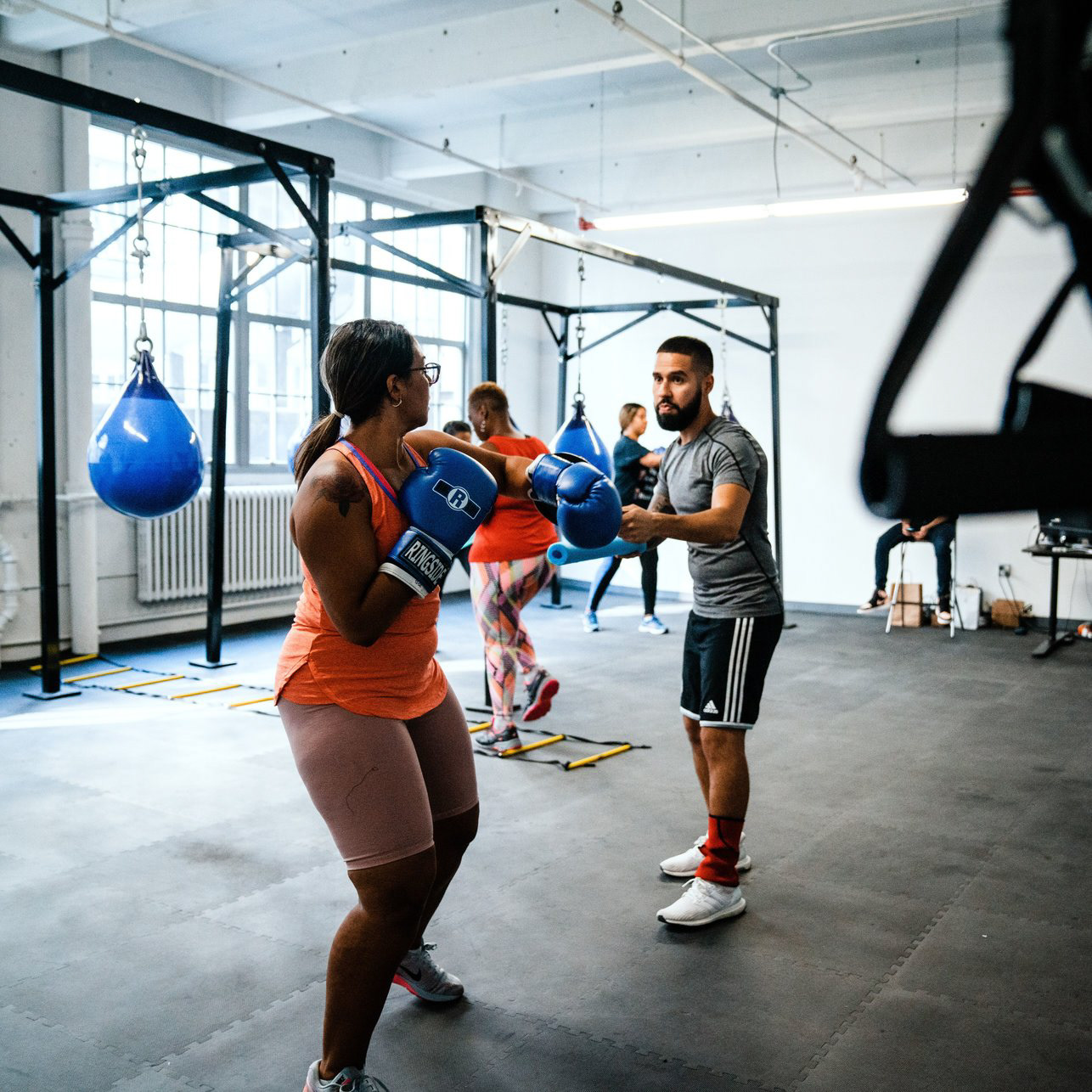

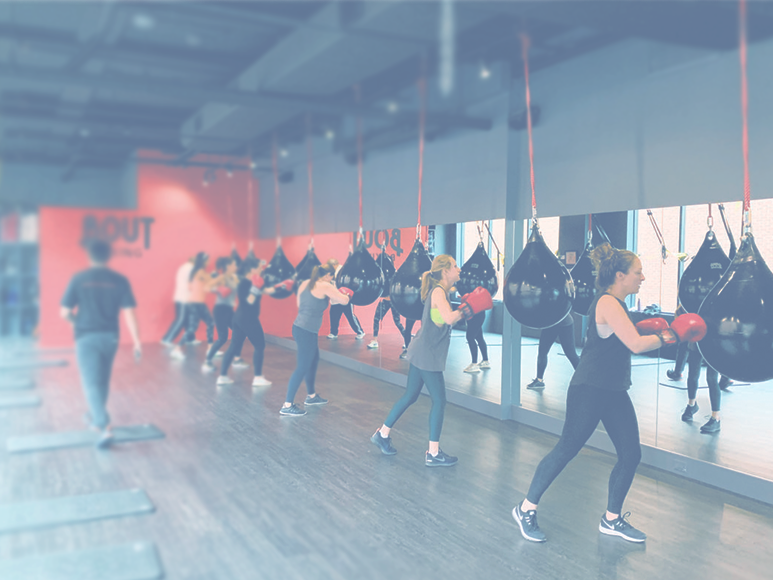

Boxing Fitness Gym
User Environment
High-intensity training regimes, taught in group sessions intended to excel individual performance.
Due to the large class sizes and streamlined training practices, most Boxing Fitness gyms choose to eliminate boxing rings.
Consumer:
Women, 25-35 years old
3-5 days a week, 1-2 hour sessions
Group range: 20-40
Problem:
There is NO footwear designed for Boxing Fitness.
Opportunity:

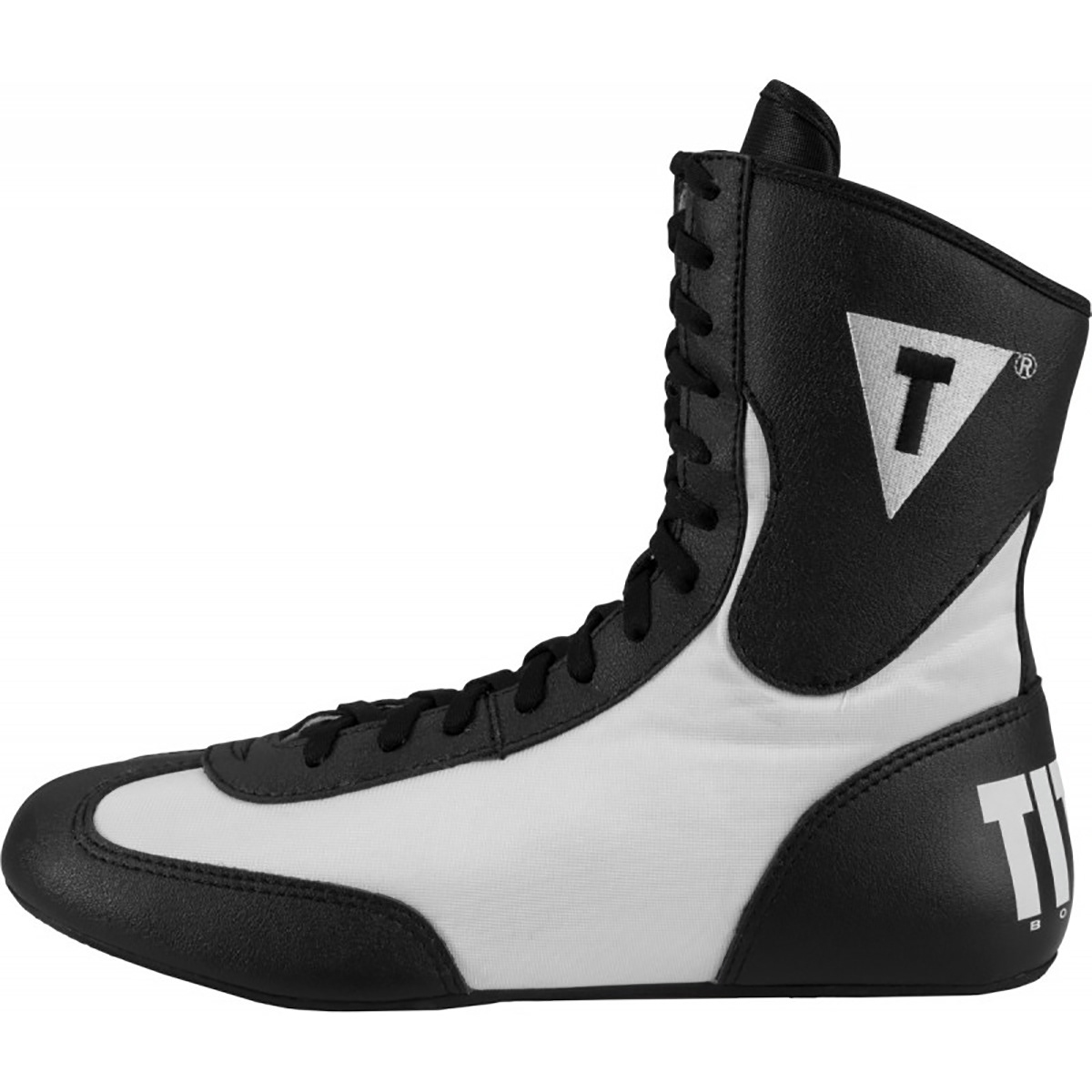

Boxing boots put unnecessary stress on user.
Other training footwear interferes with performance capabilities.
Design Criteria
Protection
- To minimize continuous impact and prevent potential injury.
Agile Precision
- Enable proper execution of basic movements.
Balance
- Distributes force to improve ground contact and responsiveness.
Comfort
- Allows execution of workouts at a high level for 1-2 hours without excessive muscle stress.
Material Criteria

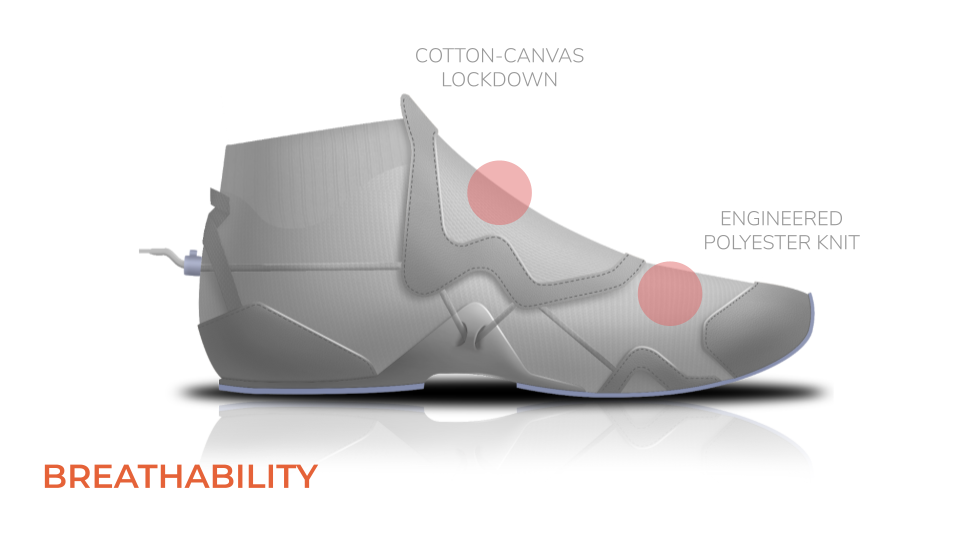

Breathability
- Moisture wicking
- Odor resistant
- Hydrophilic
Comfort
- Good hand (feels good on skin)
- Fit (contoured to the foot/leg)

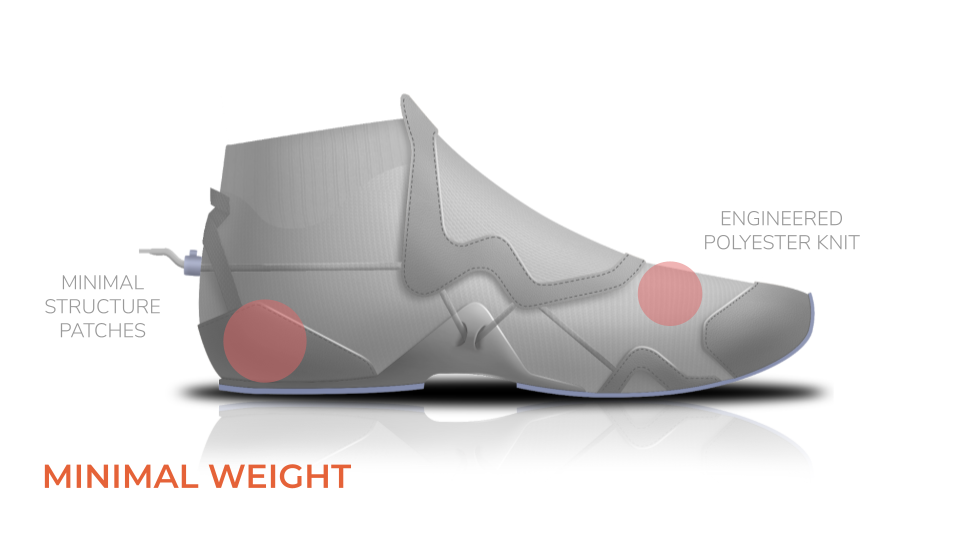

Minimal Weight
- Lightweight materials
- Lack of materials in specific places

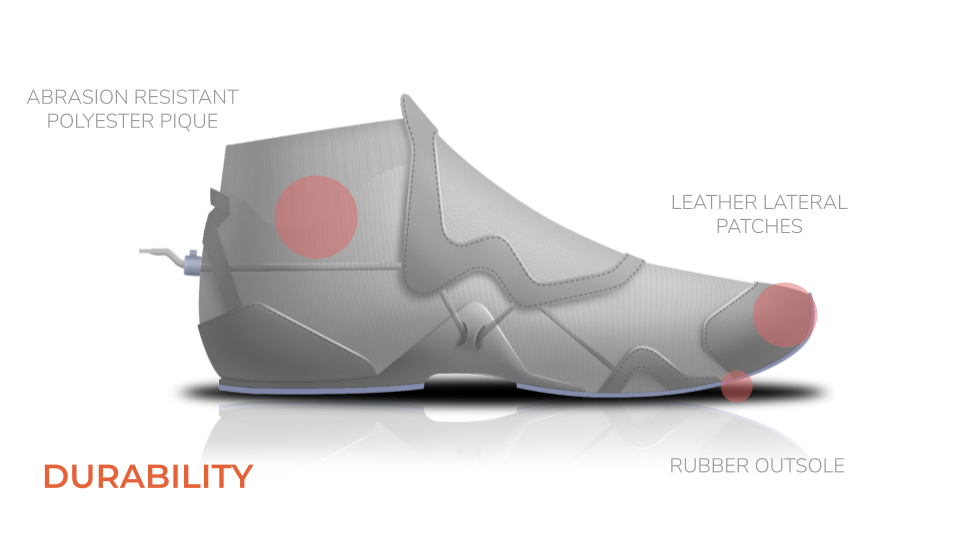

Durability
Upper
- Resilient fibers
- High tensile strength
- Abrasion resistant
Outsole
- Abrasion resistant
- Non porous/hydrophobic
- Anti-catch grip

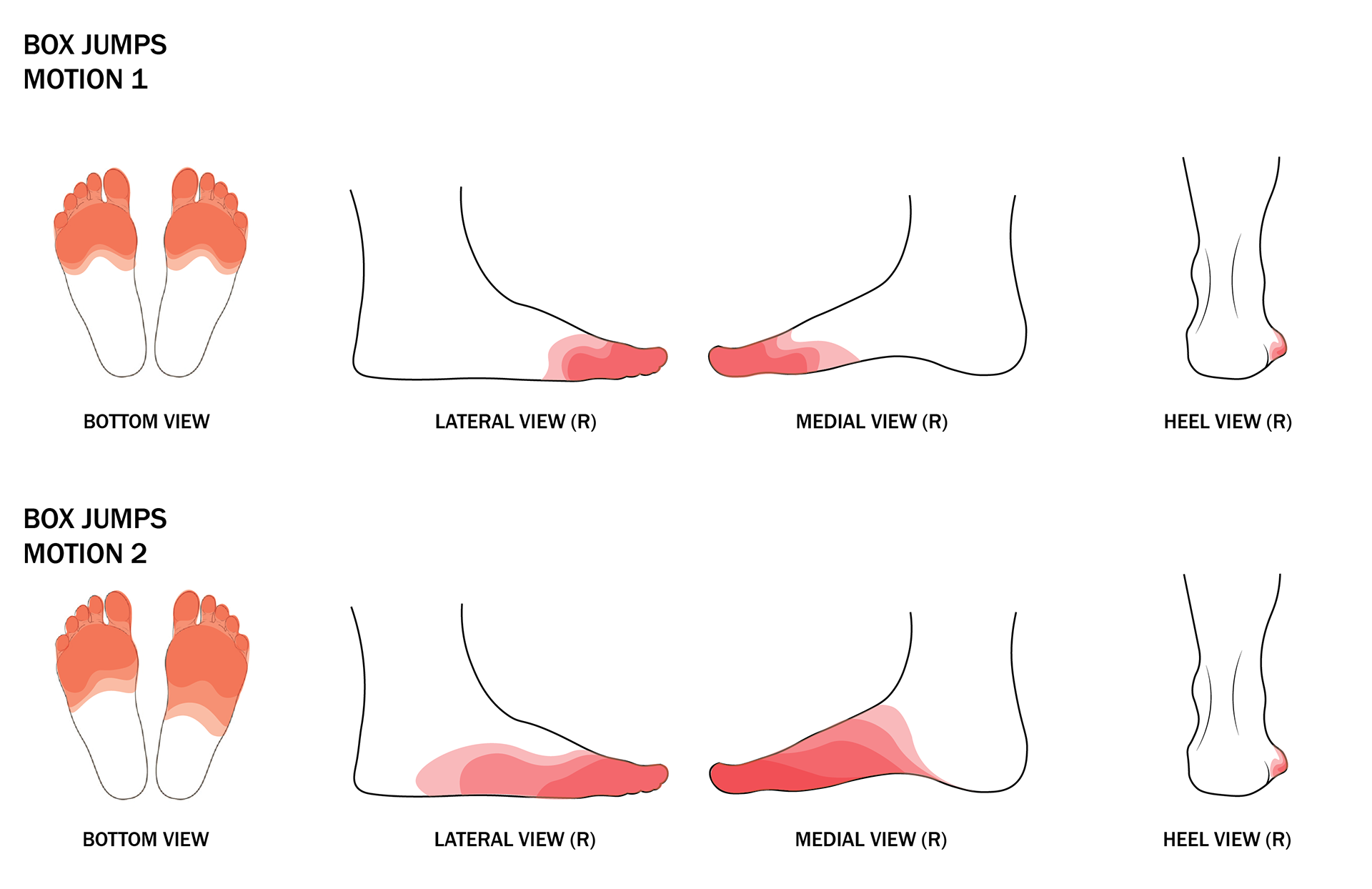

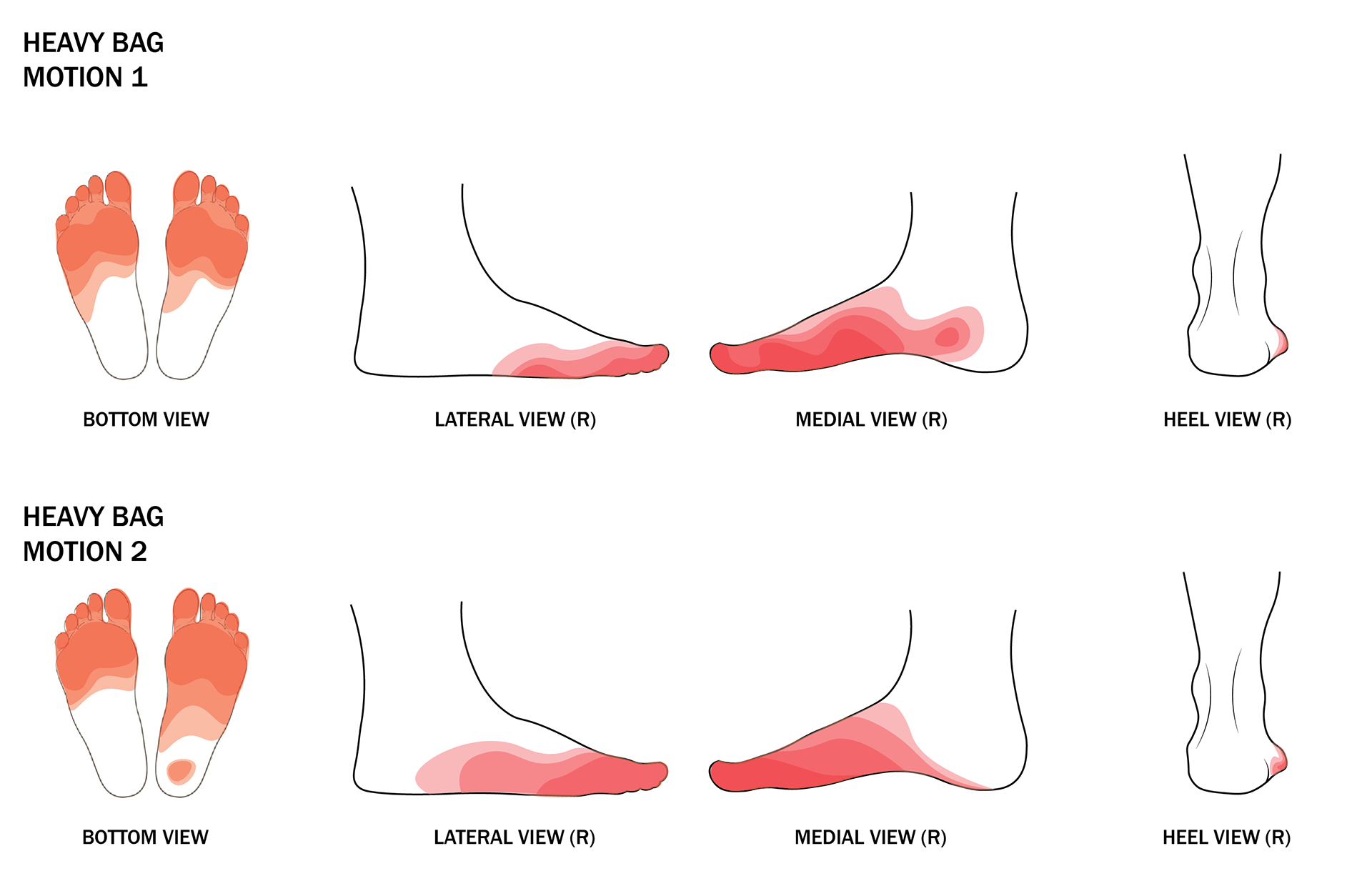

Basic Exercises & Pressure Assessments

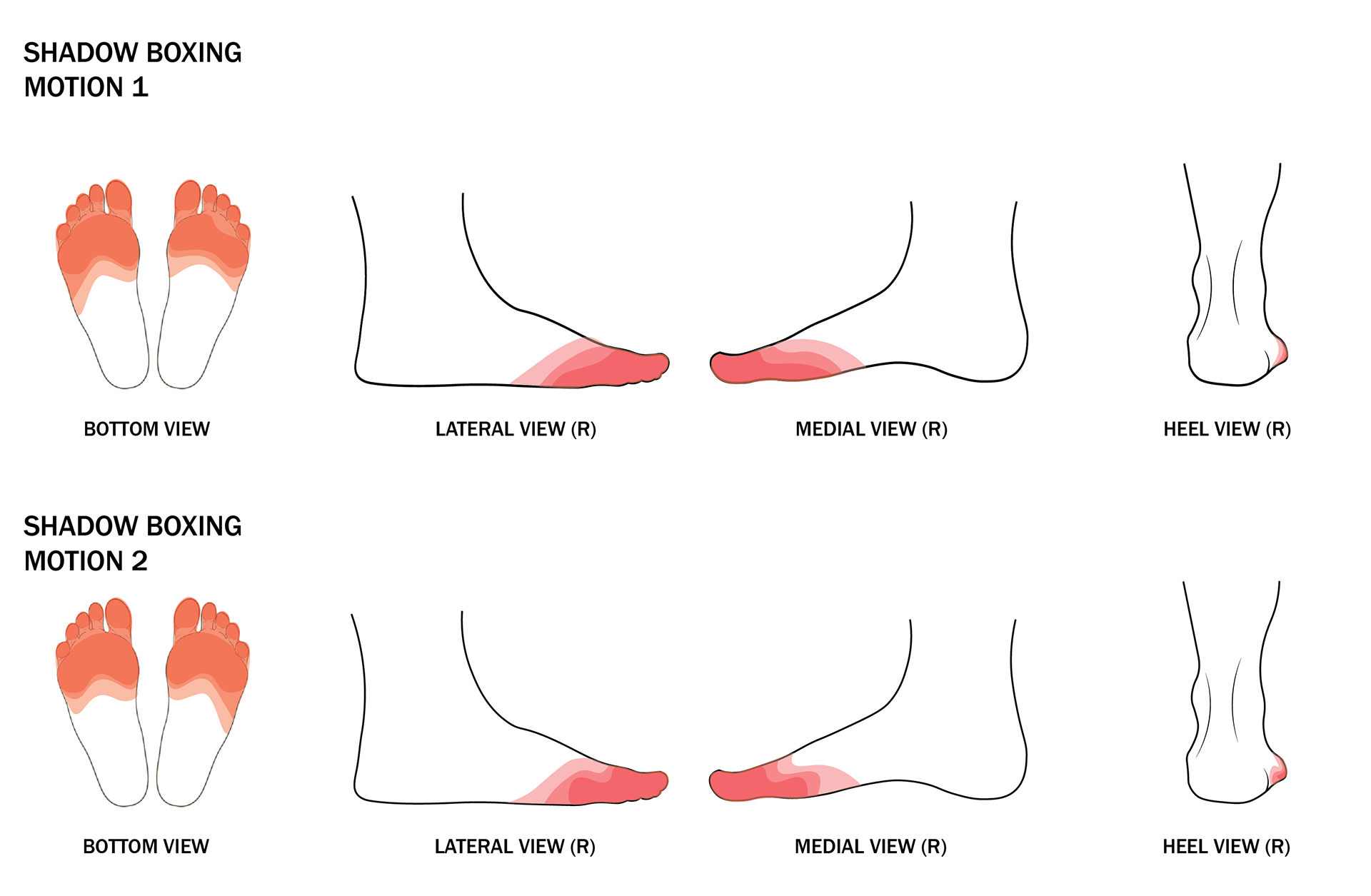

Shadow Boxing

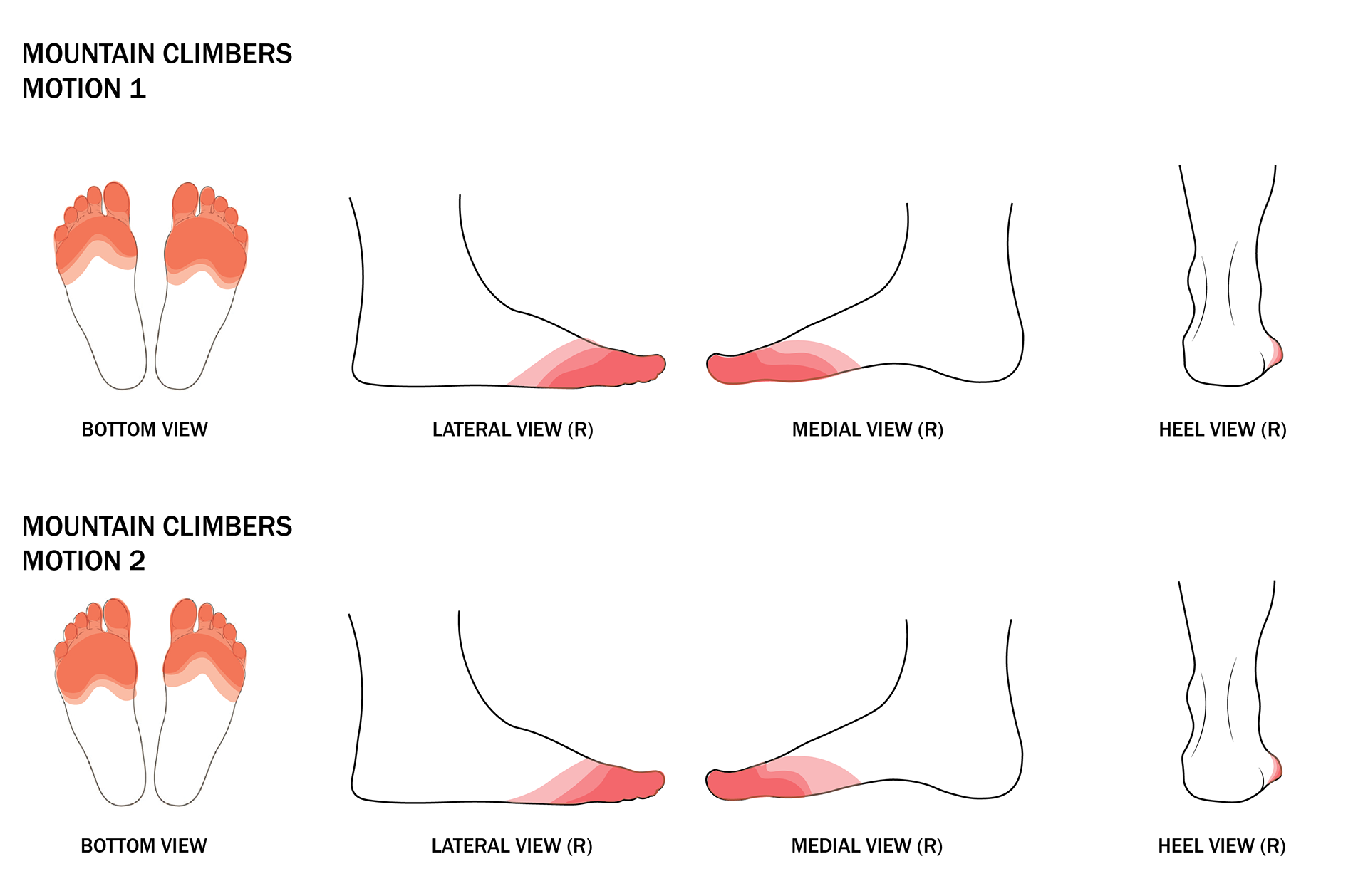

Mountain Climbers
Box Jumps
Jump Rope
Heavy-bag Punching

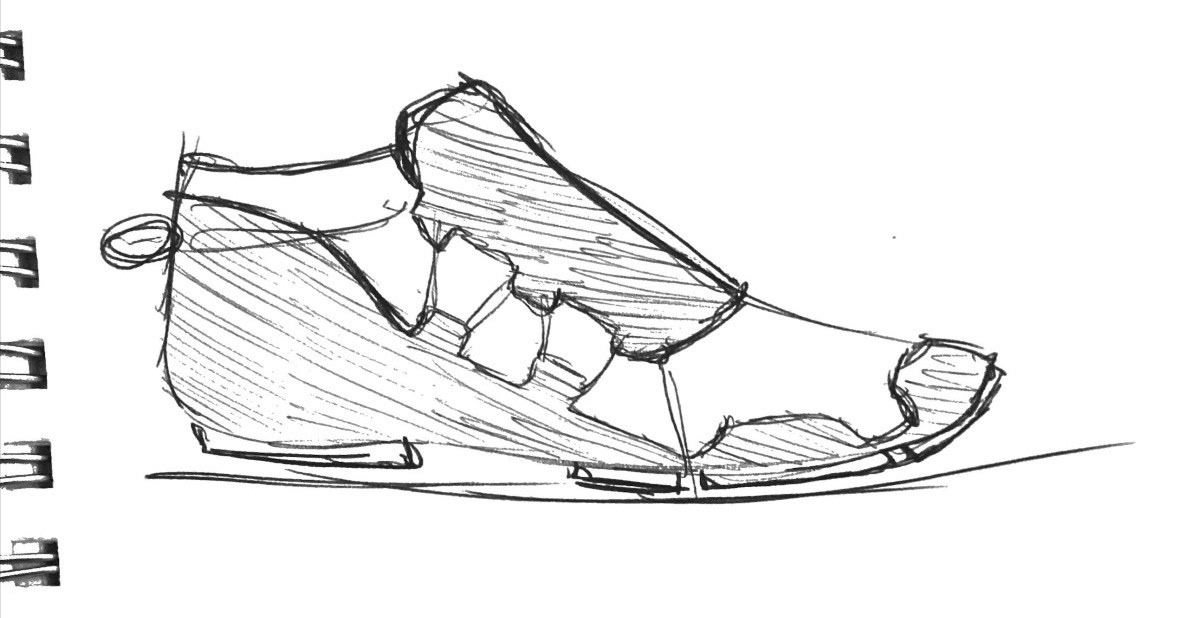

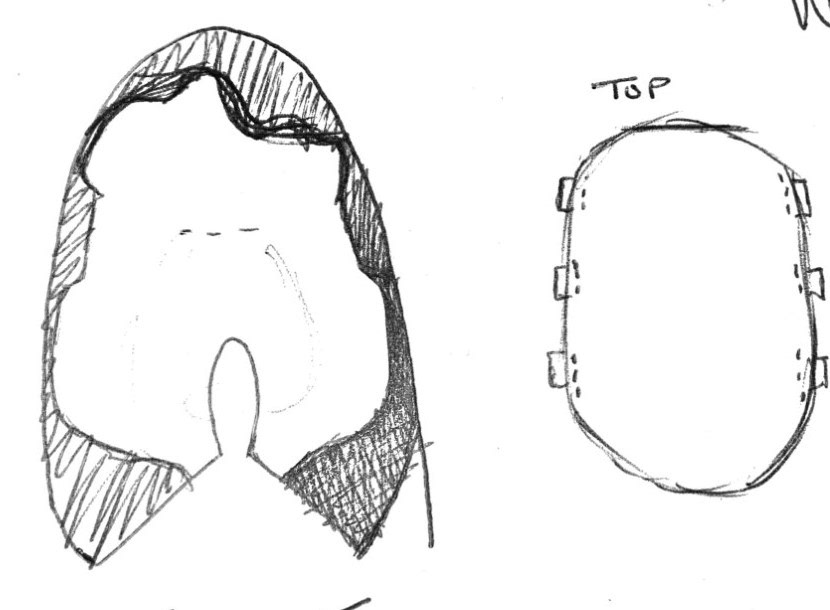

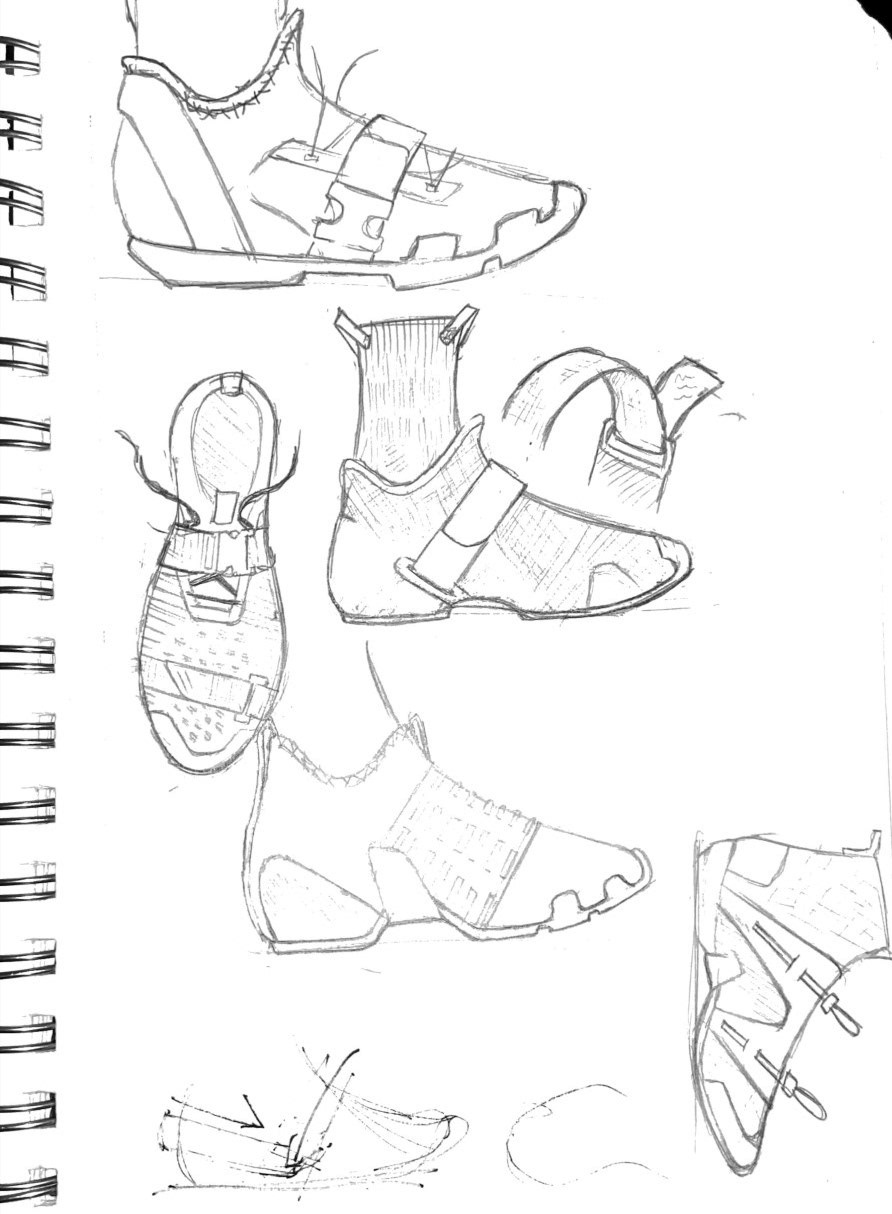

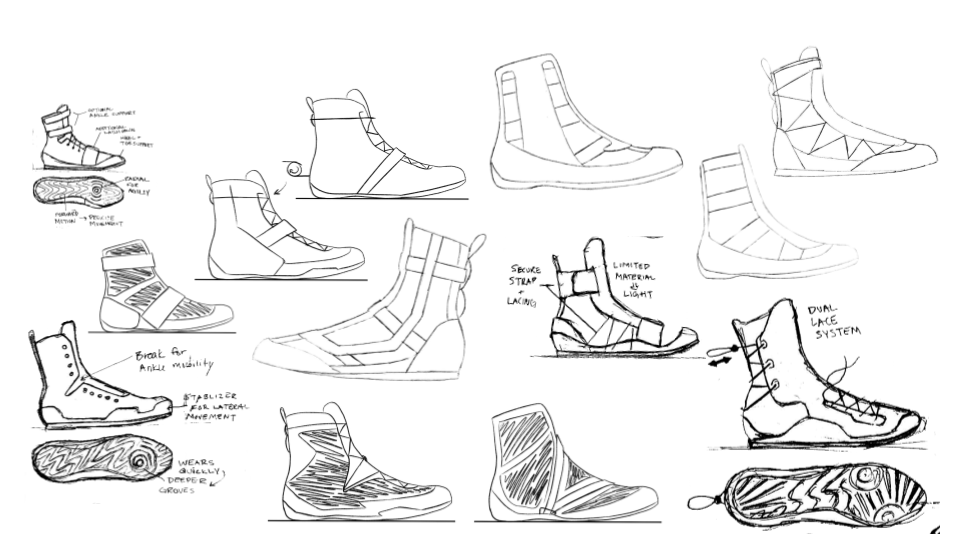

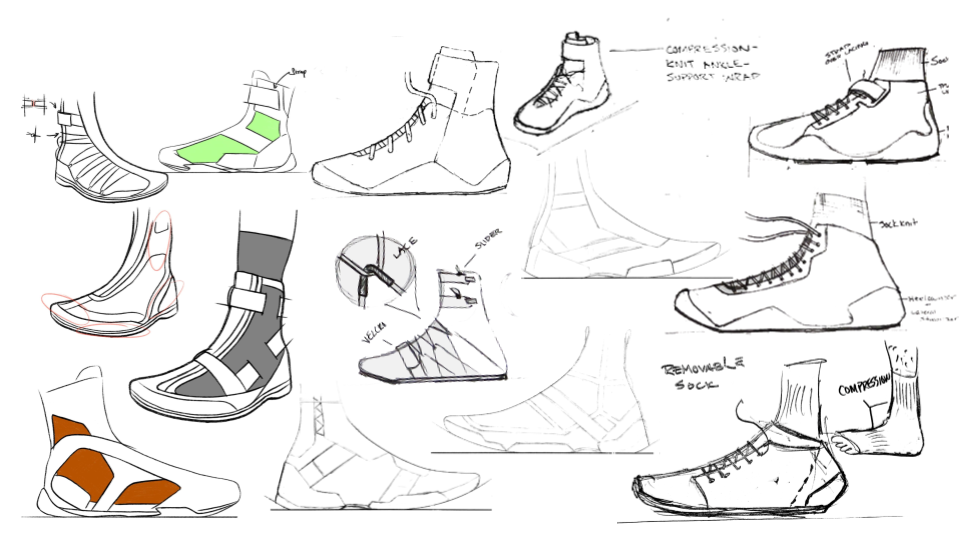

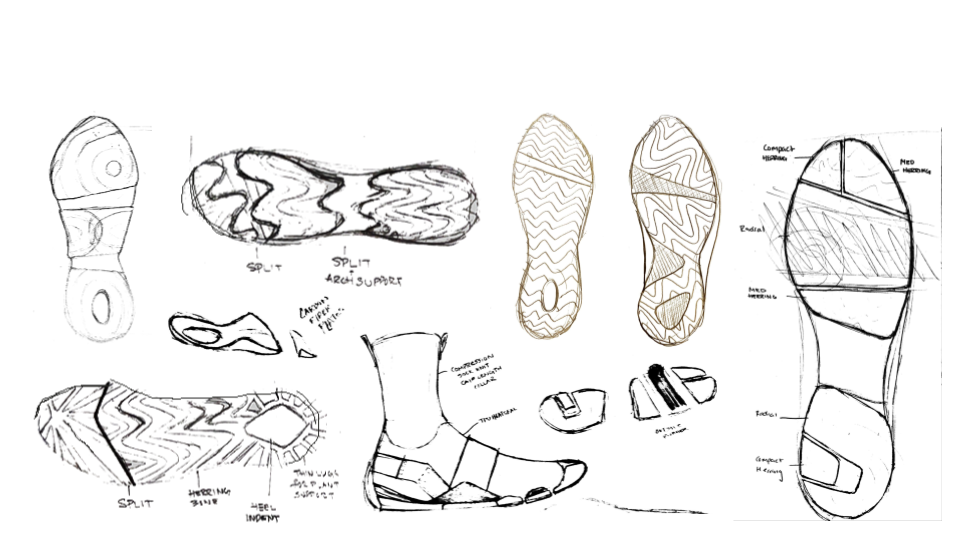

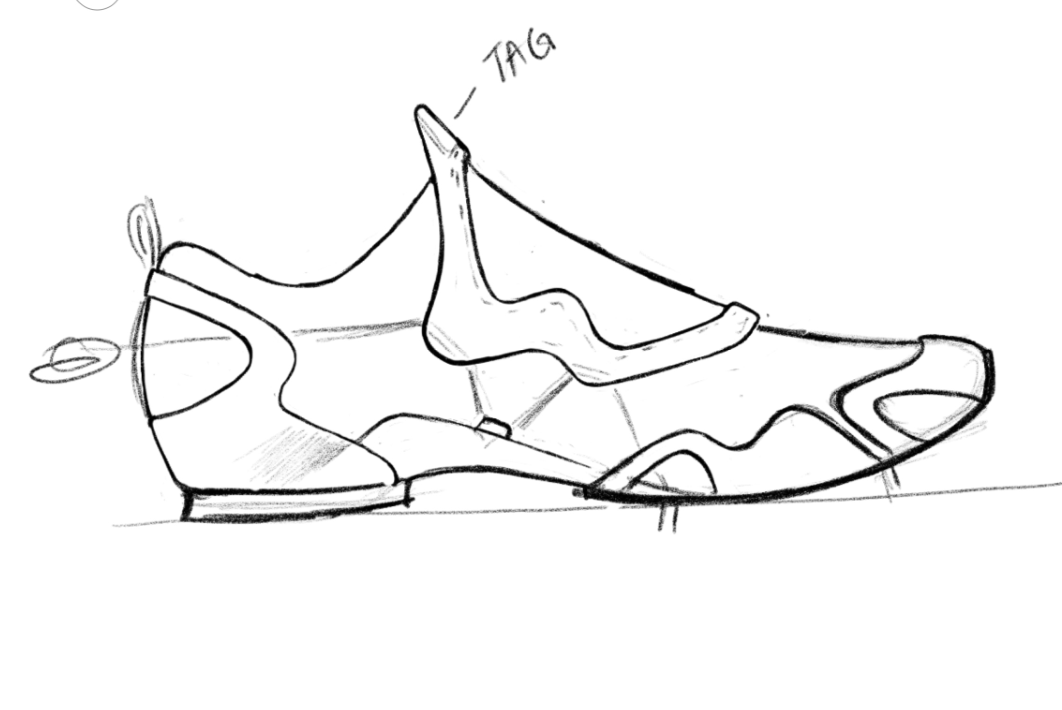

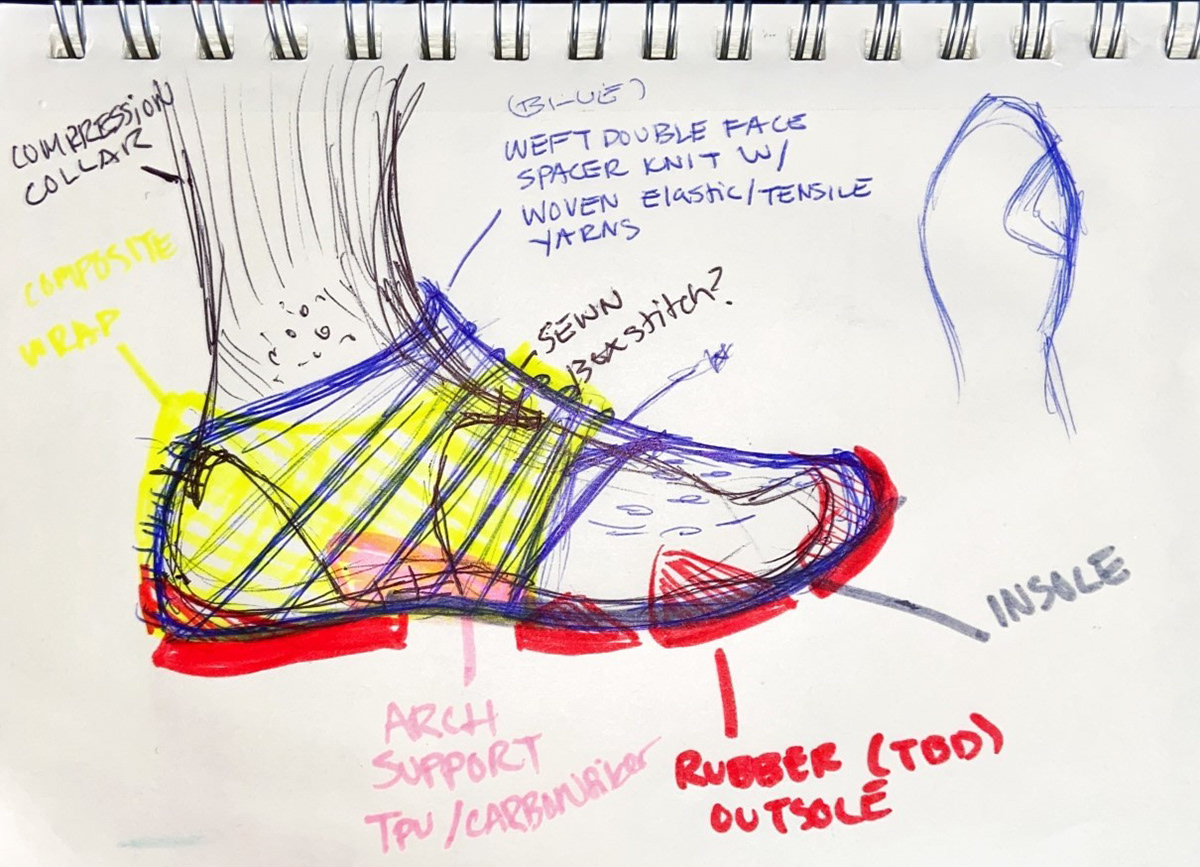

Ideation
Iteration result 1.0

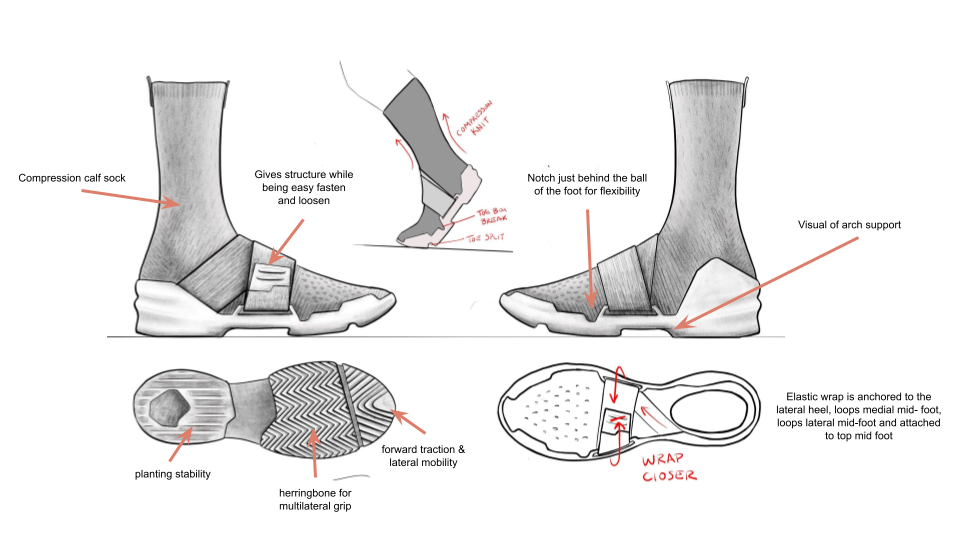

Refinement
Closure system and compression collar

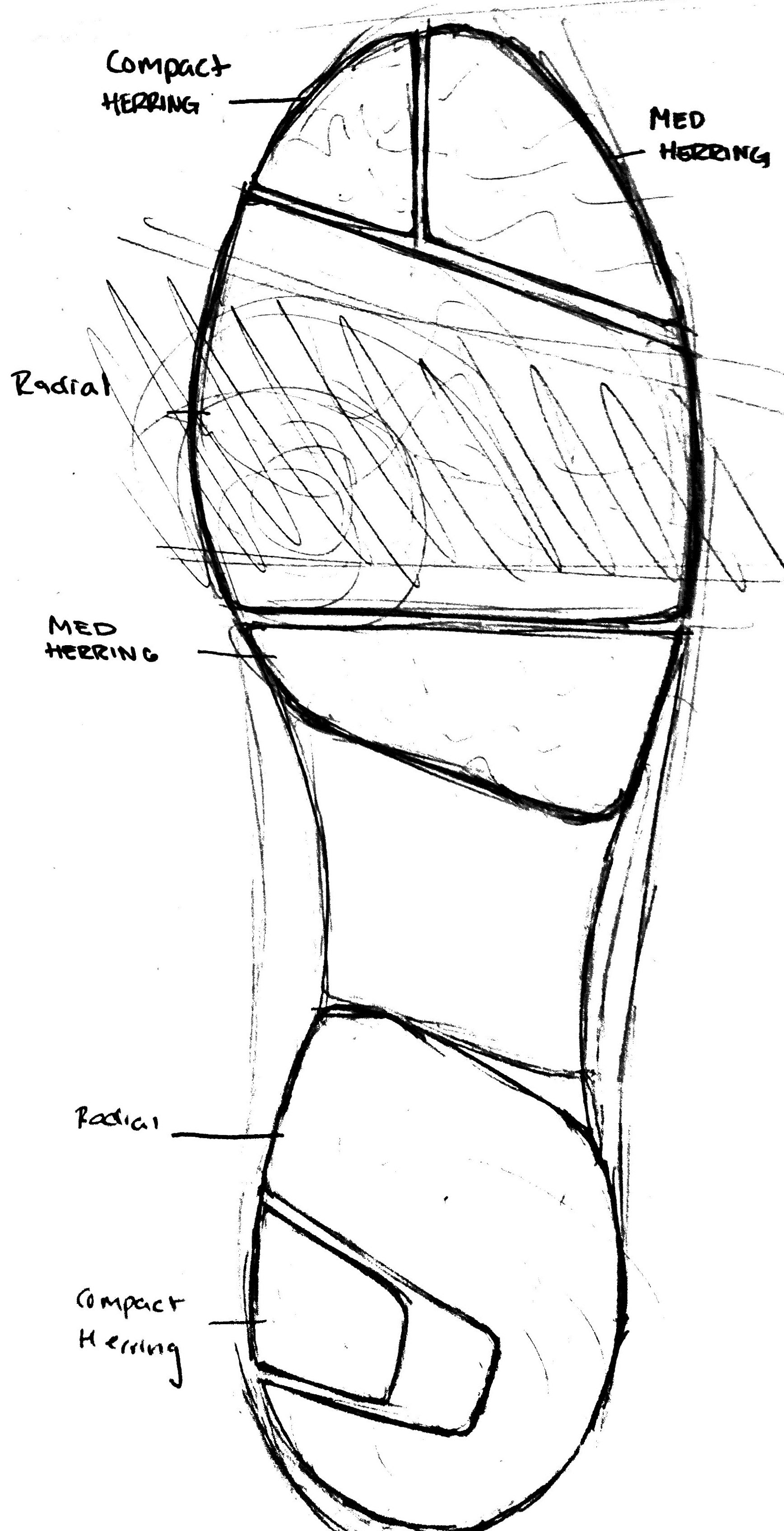

Outsole
Midsole

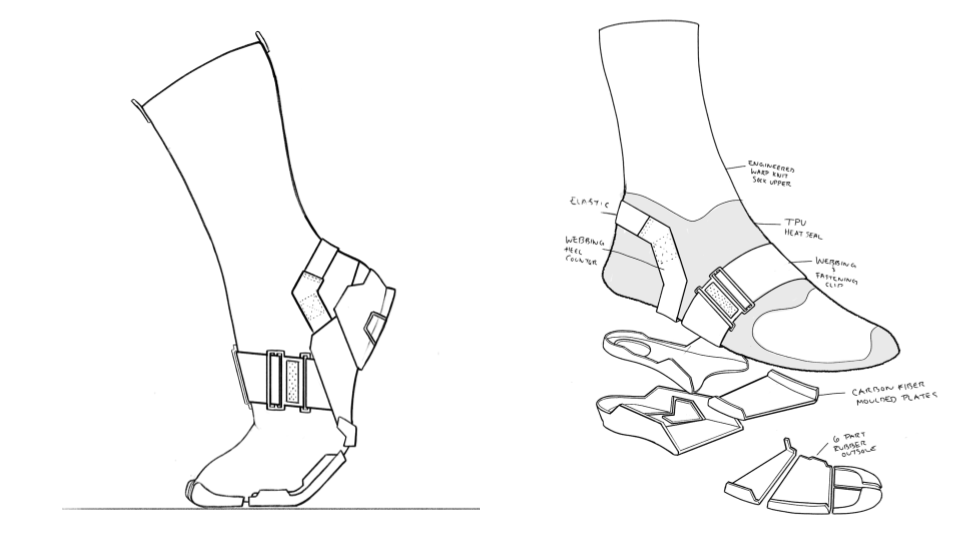

Iteration Result 2.0
Prototyping

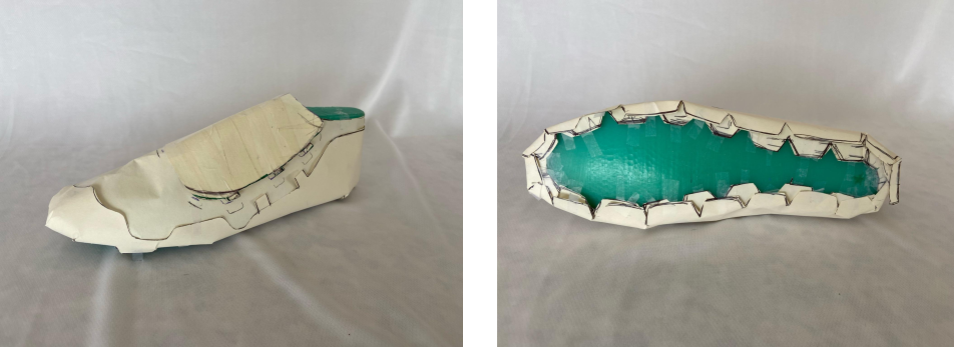

Prototype 1
Prototype 1: pattern
Prototype 1: upper construction

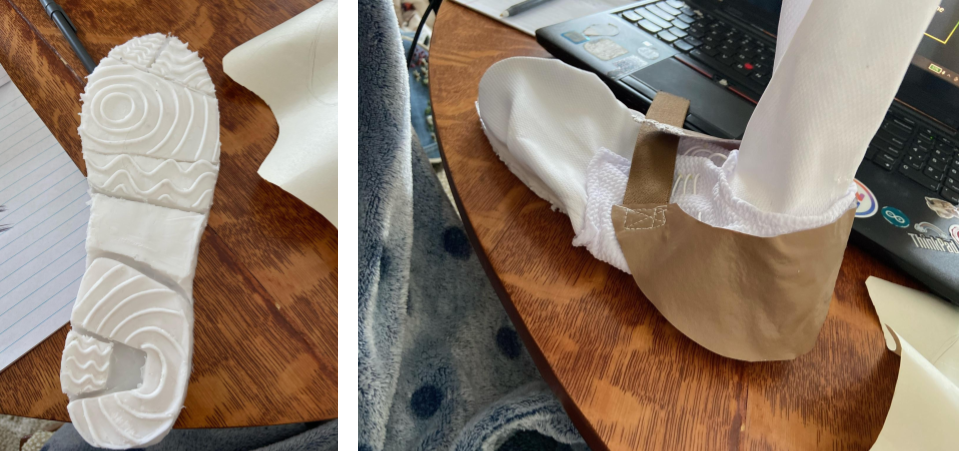

Prototype 1: outsole and lockdown attachment

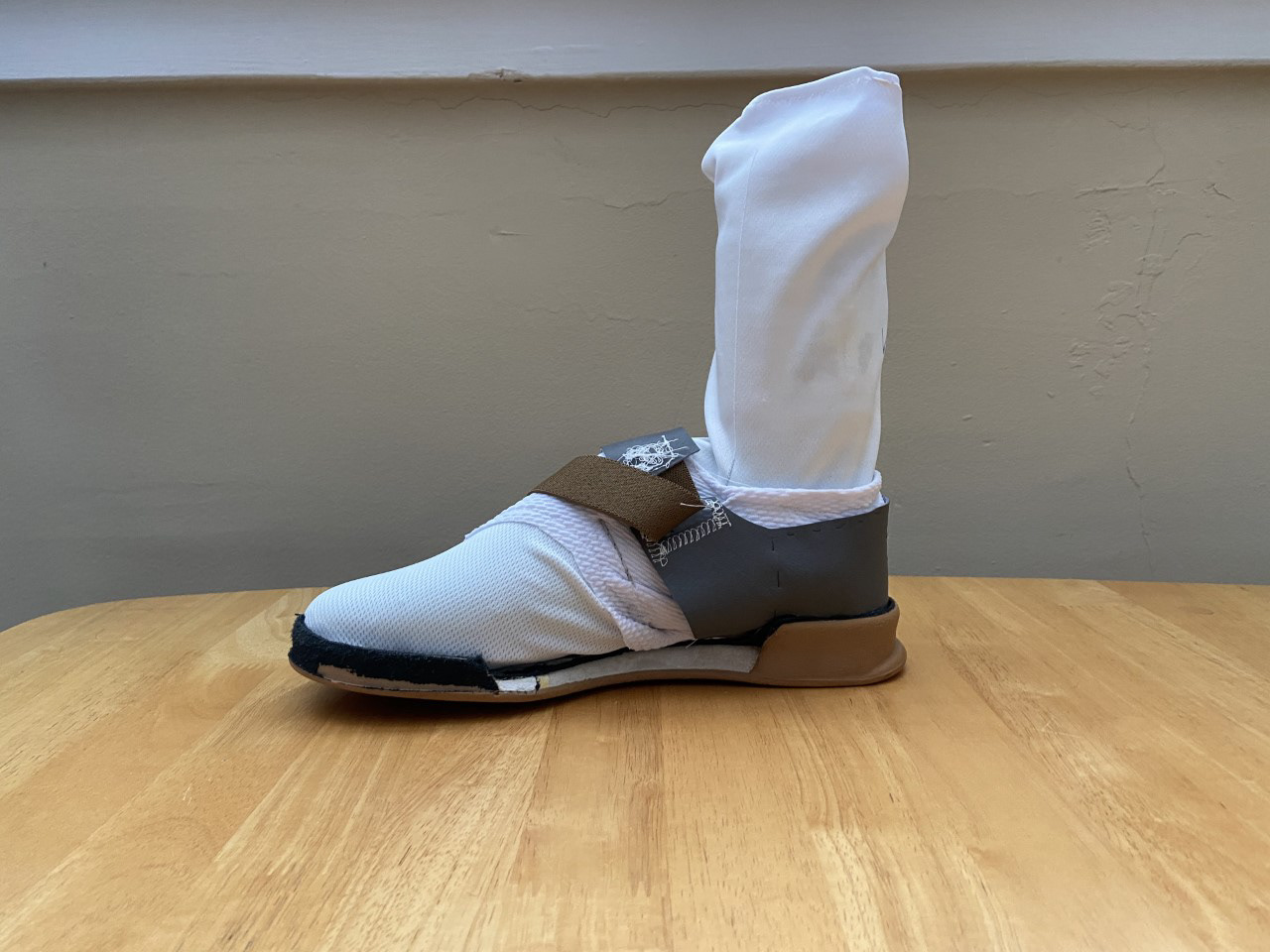

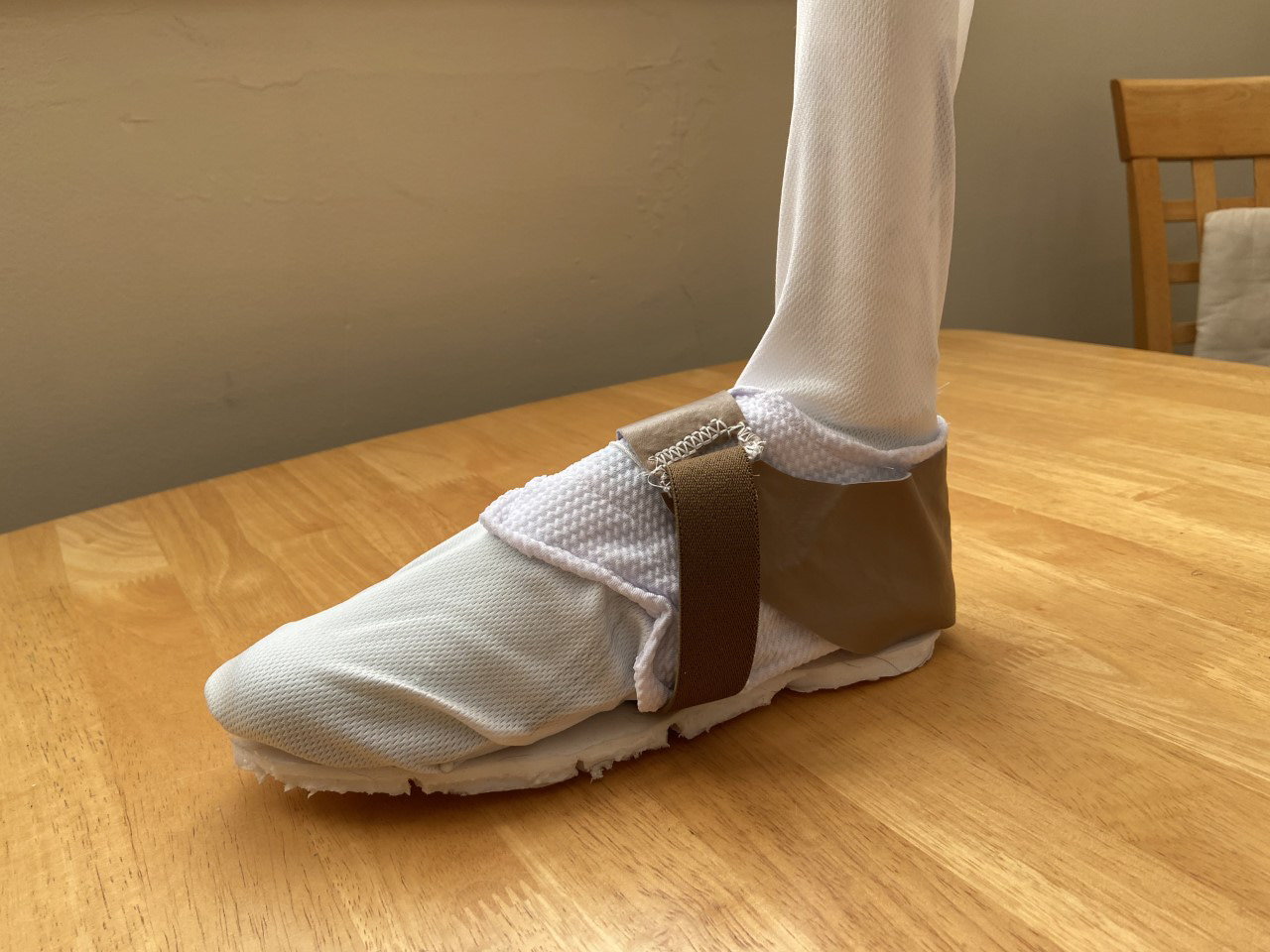

Prototype 1: complete
Prototype 2: outsole mold

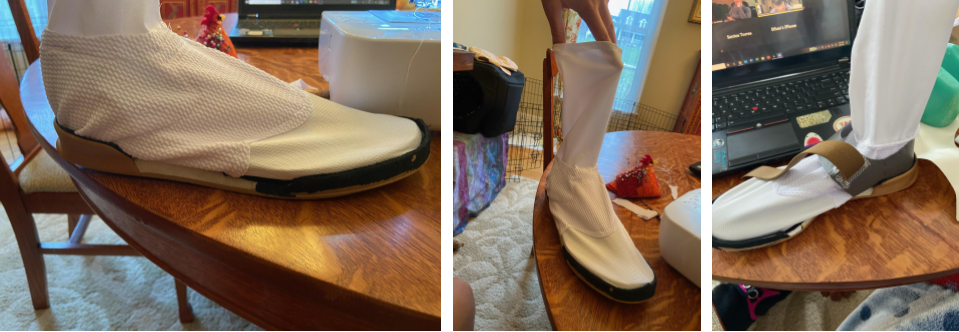

Prototype 2: outsole attach to upper
Prototype 2: complete
Prototype 3

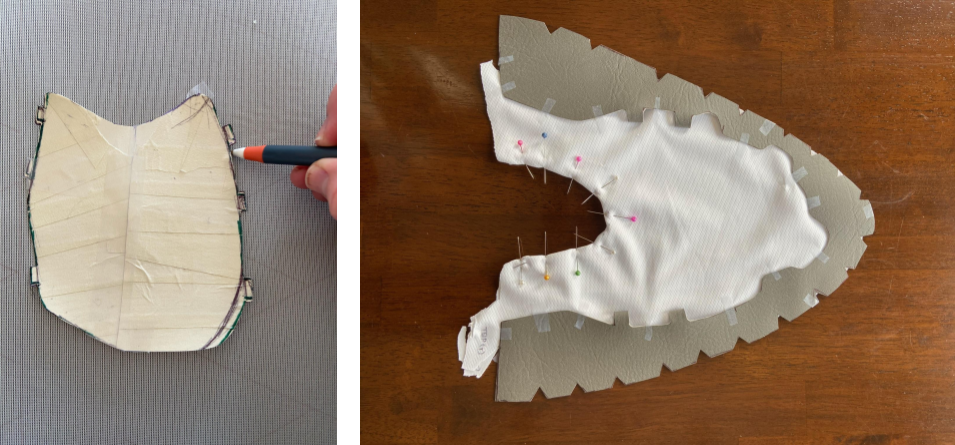

Prototype 3: paper pattern

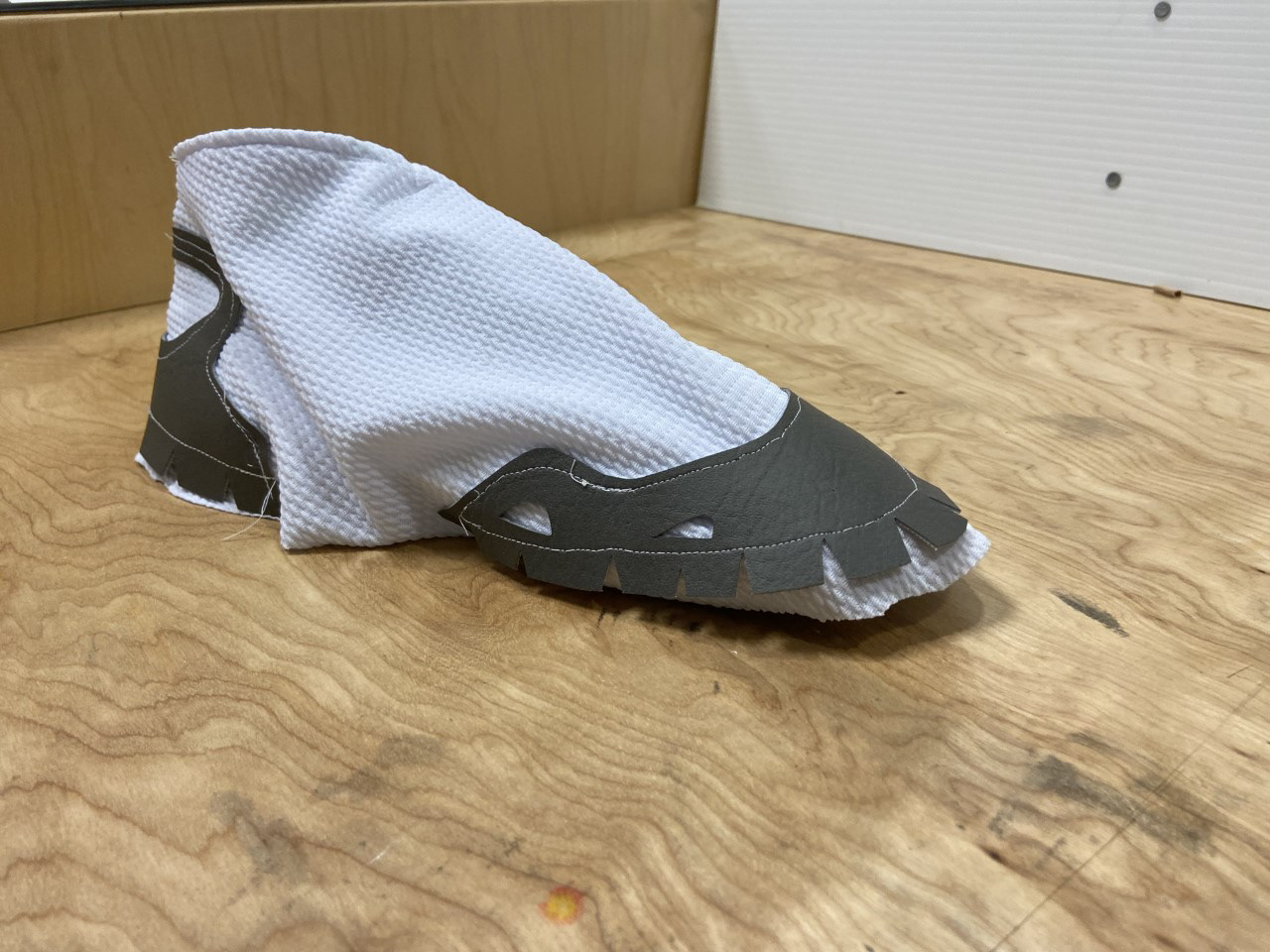

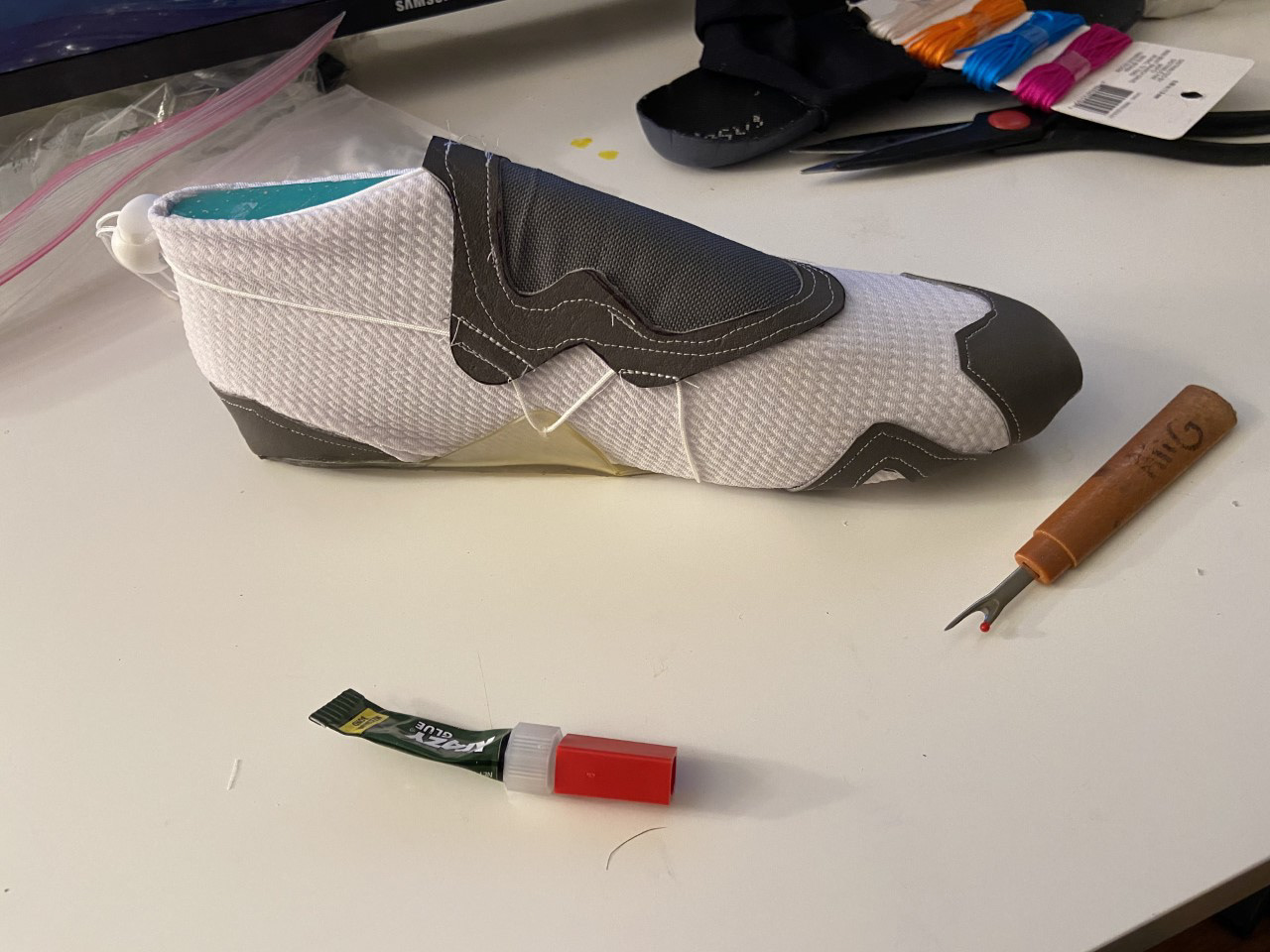

Prototype 3: upper construction
Prototype 3: complete upper
Prototype 3: toggle and outsole attachment

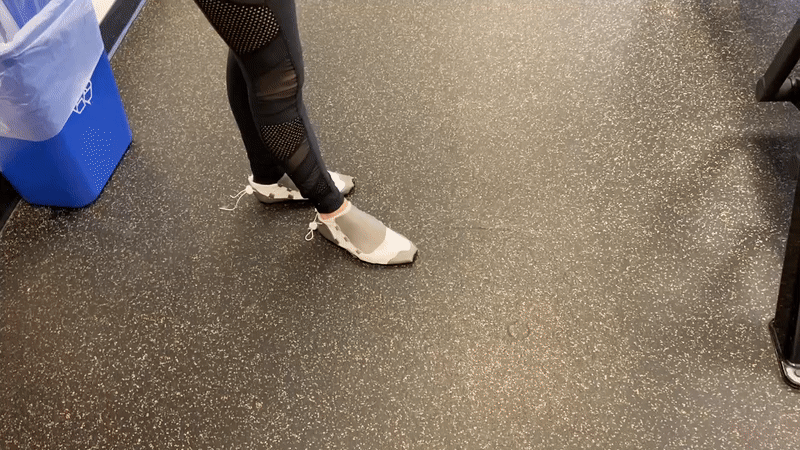

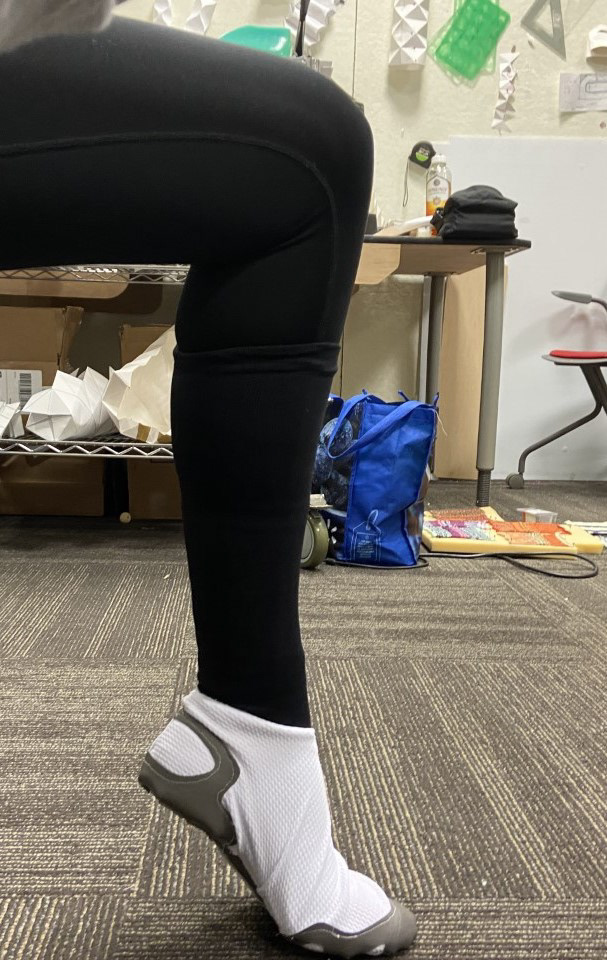

Prototype 3: fit test

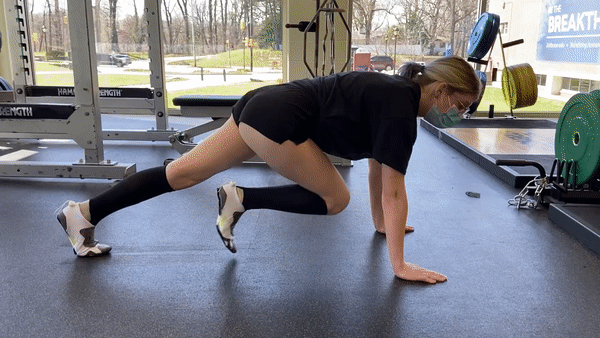

Mountain climbers
Box jumps
Heavy bag
Shadow boxing

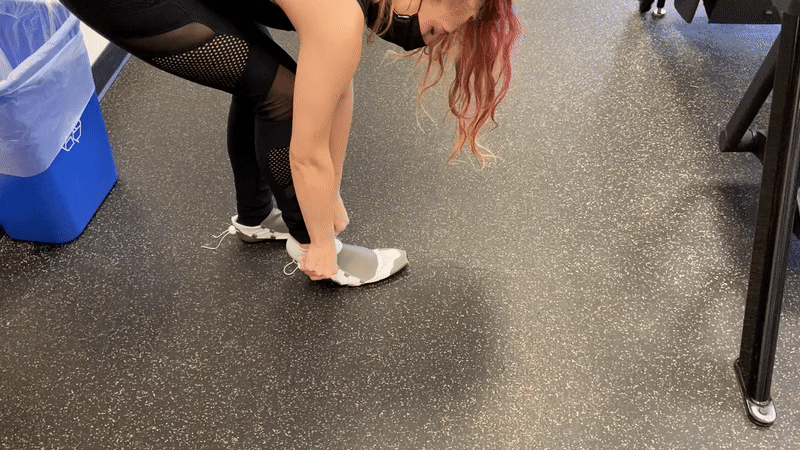

Prototype 3: User testing
Prototype 4
Prototype 4: Upper construction

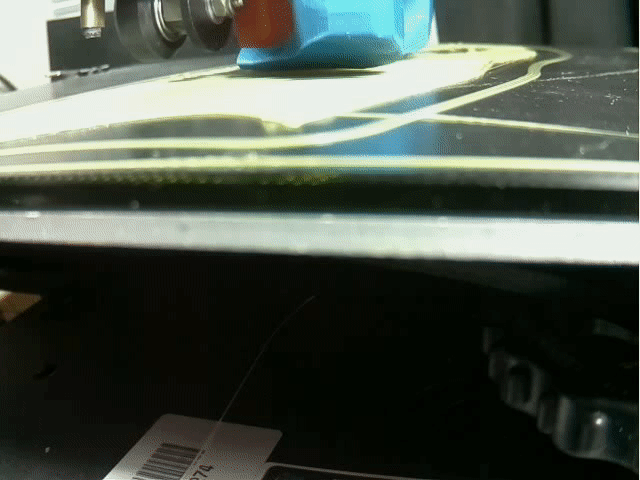

Prototype 4: Arch support 3D print

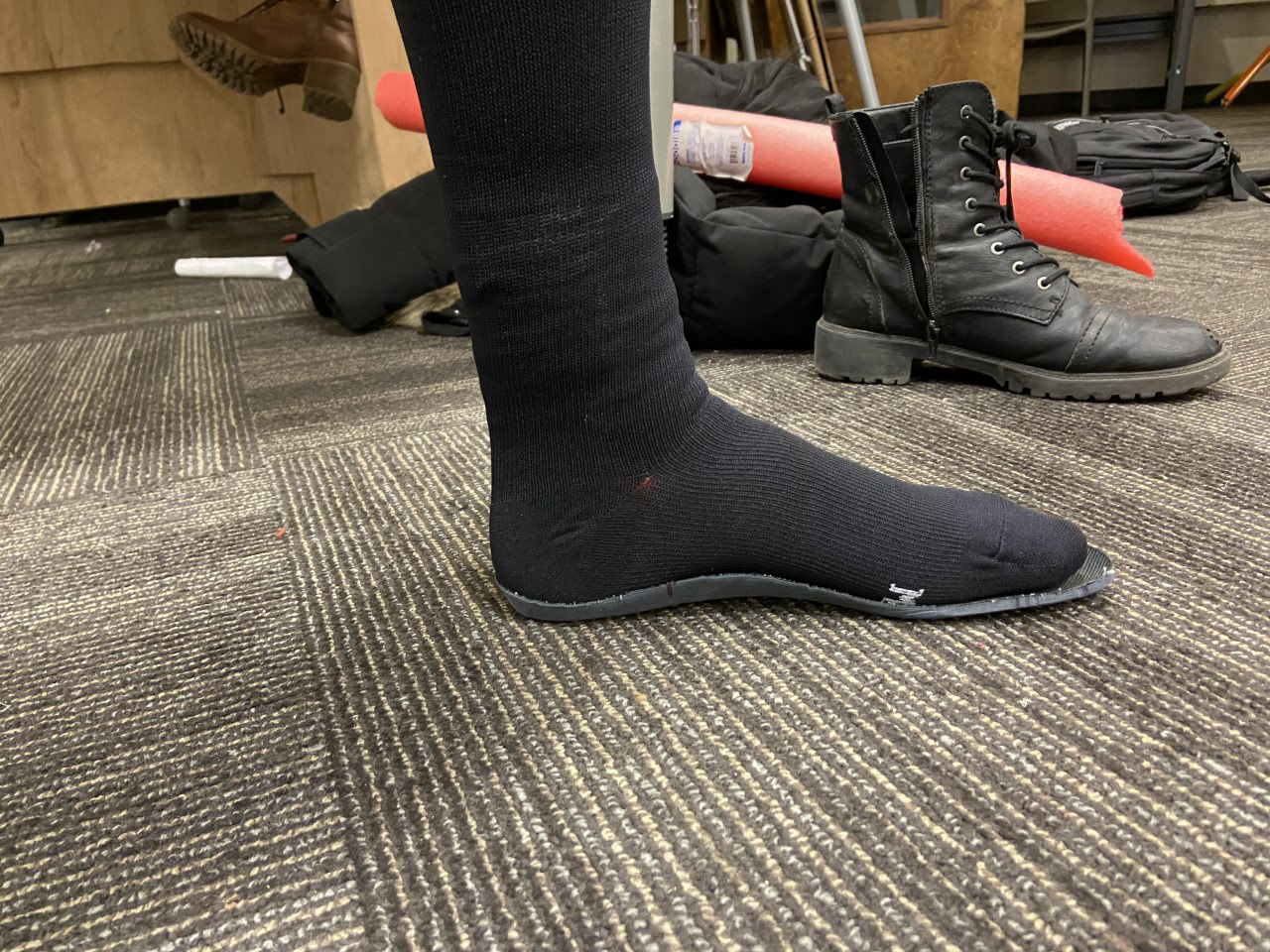

Prototype 4: Compression sock/insole hybrid
Prototype 4: Upper and compression insole
Prototype 4: Colorway
Prototype 5

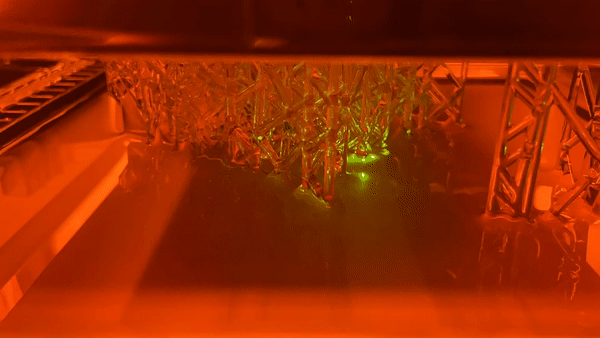

Prototype 5: 3D Resin Print

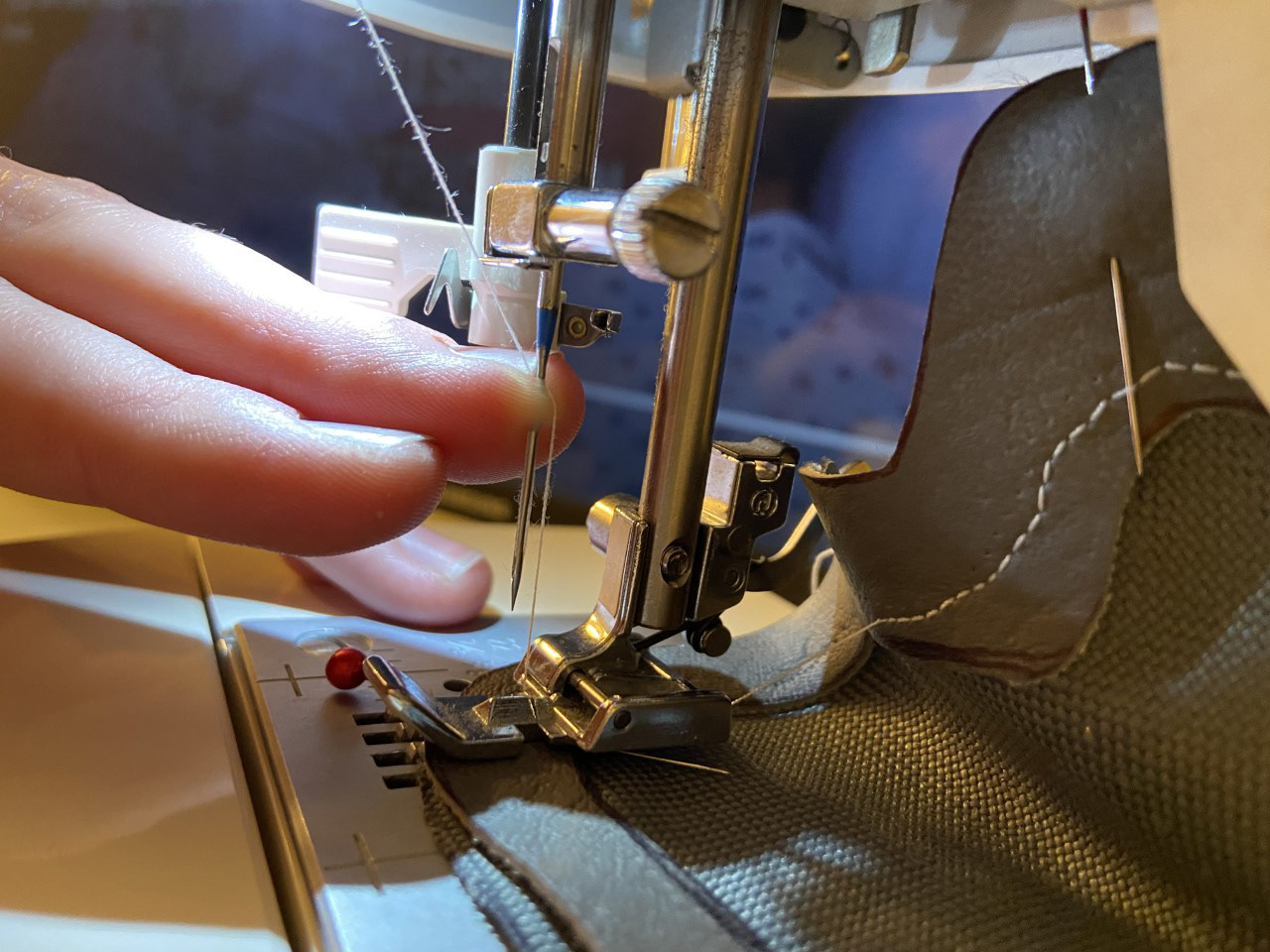

Prototype 5: Sewing upper

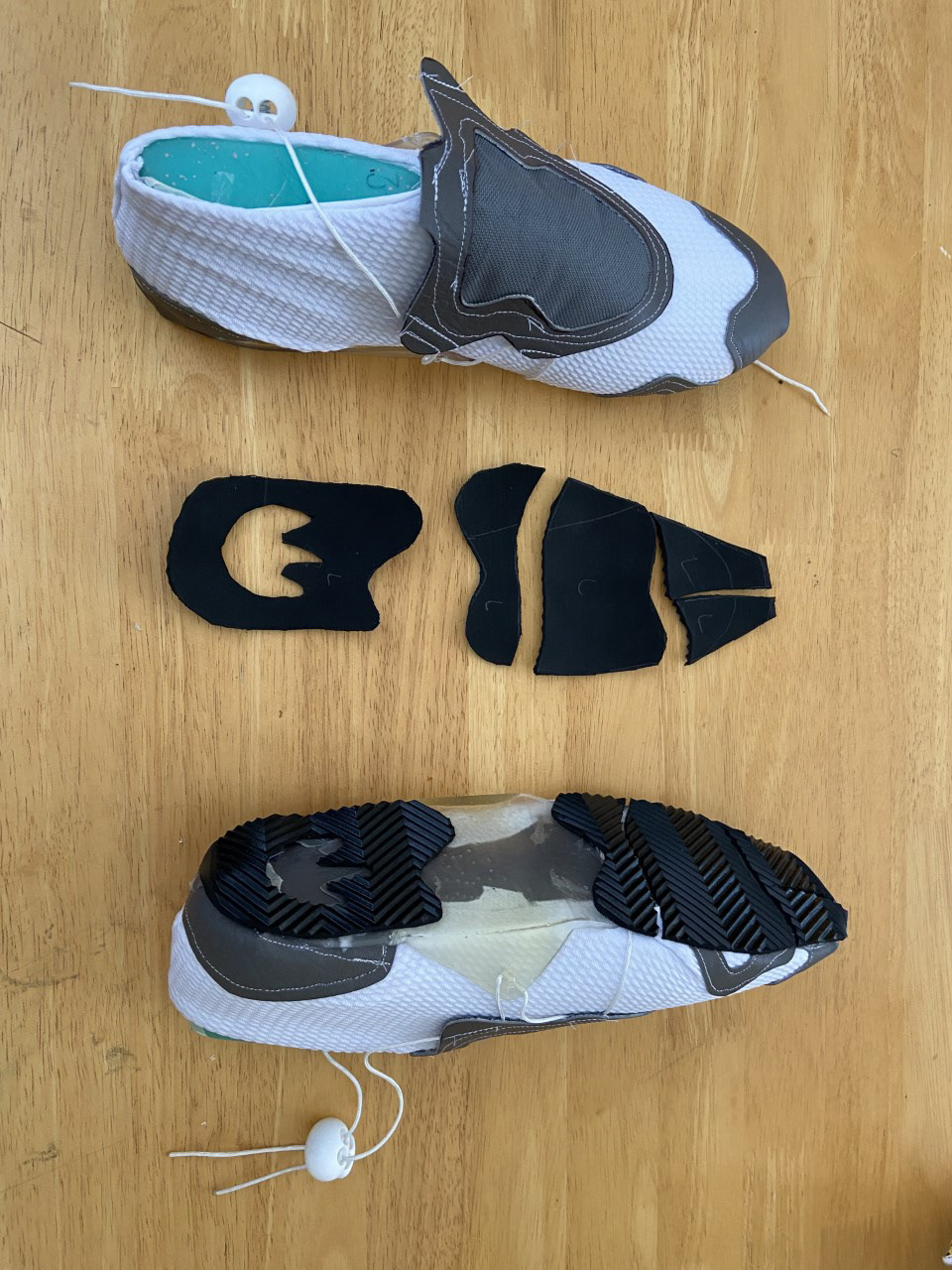

Prototype 5: Attaching arch support, lockdown, and outsole
Prototyping 5: Fit testing
Mountain climbers
Box Jumps
Jump rope
Shadow boxing
Heavy bag
Prototype 5: User testing
Prototype 5: Flex stance with compression insole

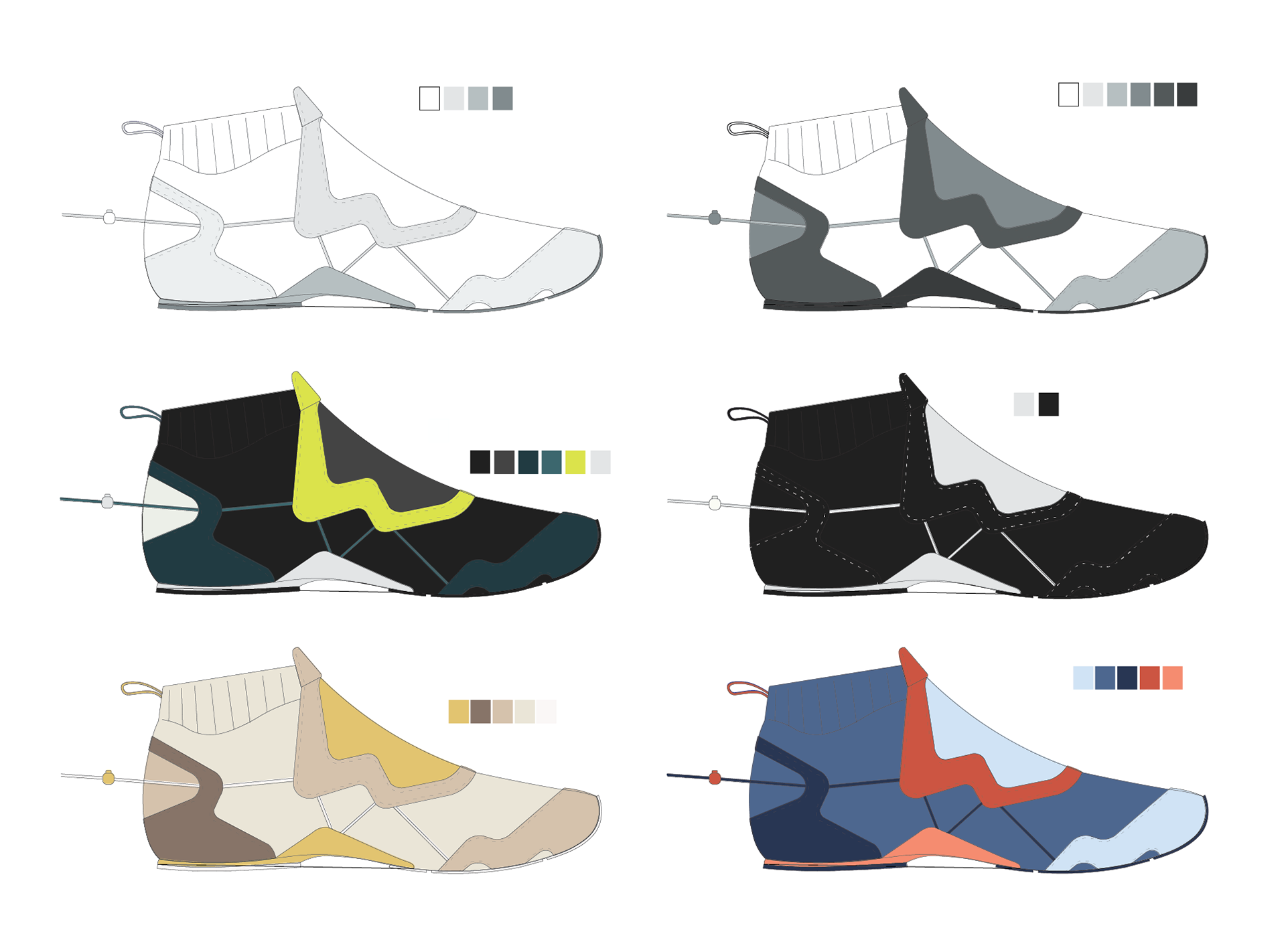

Our color story was inspired by the light, translucent qualities of jellyfish, mirrored in the structural design of our footwear. We also addressed our user feedback that expressed a desire for non-gendered colorways. This was combined with our research of color trend forecasting for the upcoming 5 years to result in Luminosity.
Material Criteria Fulfillment
we chose synthetic leather patchwork which not only references the materiality of traditional boxing gloves and boots , it is also strong enough to withstand the long-term wear endured by fitness footwear.
Using a lightweight, engineered knit for our sock upper significantly reduced the weight of our footwear without sacrificing necessary structure.
Where possible we included canvas pads which reference the stretched canvas floor of boxing rings as well as offering moisture wicking, breathable properties to reduce chafing and overheating.
Comfort is considered with the materiality of the TPU shank which supports the arch while being flexible enough to not interfere with the natural movement of the foot.
Design Criteria Fulfillment
Comfort:
We redefined comfort by eliminating bulky midsoles and introducing a lightweight TPU arch shank. Additionally, the ankle collar creates a smooth transition from shoe to leg even when not using the hybrid compression insole.
When in use The compression insole aids proper blood circulation and allows execution of workouts at a high level for 1-2 hours without excessive muscle strain.
Agile Precision:
A wide plane of lockdown secures the foot to the slim-profile outsole which Enables proper execution of basic fitness movements.
Balance:
The outsole, lockdown and shank also work together to Distribute the force on the foot improving ground contact and responsiveness.
Protection:
Tempo uses a series of patchwork to secure the heel, sides and forefoot to prevent potential injury.
Tempo also features a gap in the arch support and outsole in order to minimize continuous impact on the heel bone.
